GENERAL INFORMATION
- Section Joint: Tongue and Groove joint between sections with Thermal Break
- Flexible Vinyl Joint Seal

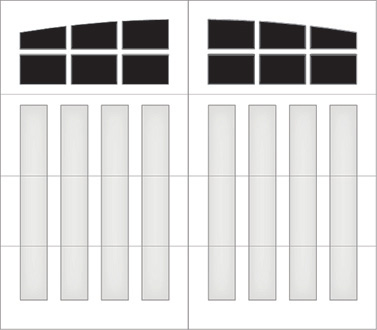

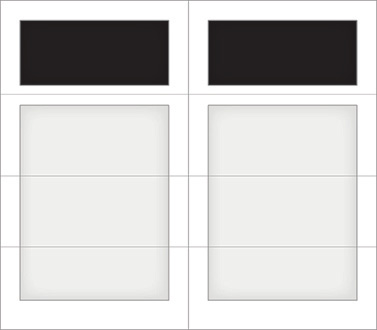

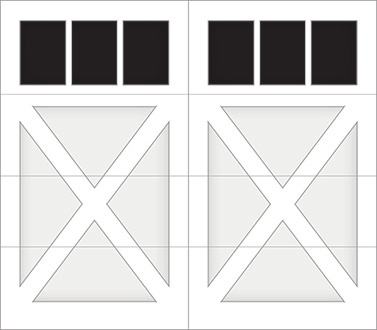

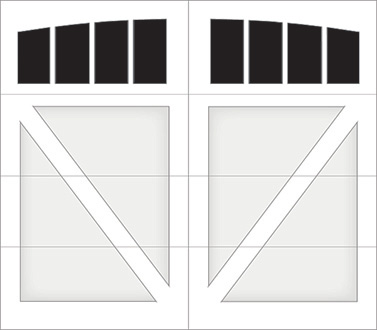

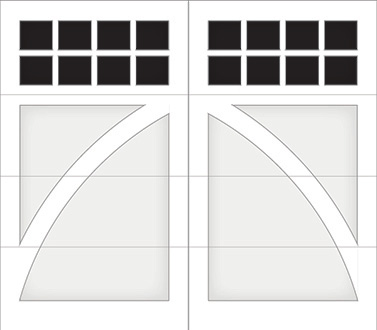

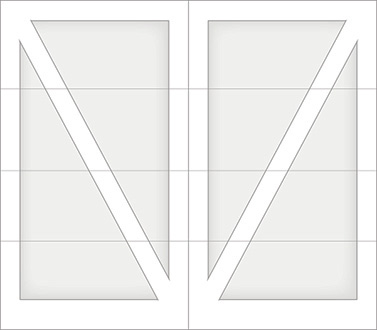

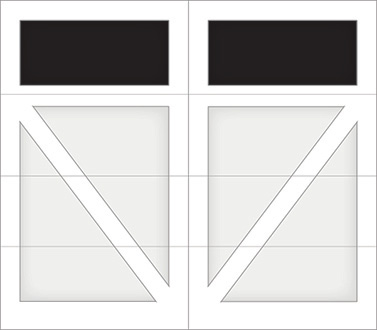

- Standard Overlay Dimensions (on flat): .401” Beveled Profile, Top Rail = 5”, Bottom Rail = 7 5/8”, End Stiles: 5”, Meeting Center Stiles Combined = 10”, Meeting Rails Combined = 5”, Design Groups 1, 2, A, B, V and X Stiles = 4 ½”, Design Group 3 = 3 ½” Stiles, Window Mullions = 9/16”

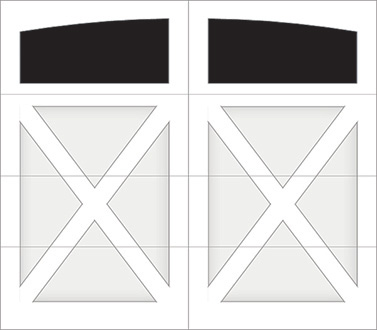

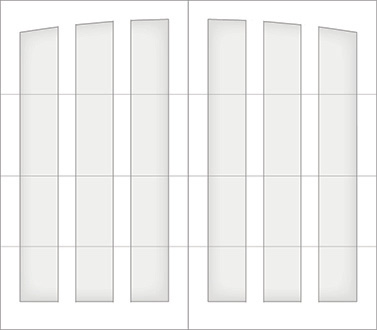

- Standard Arch Radius: Single Car = 15’-0” Radius, Double Car = 2 at 15’-0” Radius or optional: 1 at 58’-0” Radius
- Overall Thickness: 2 ½”, (2” Steel Section + ½ Composite Overlay)
- R Value = *10.4
*R values are calculated specifically for the colder climates and offer the best long term insulating value.
- Glass: Clear 1/8″ tempered glass standard
- Finish: Steel Sections = Baked on Polymer Enamel, finished door = High Performance Professional Grade Acrylic Primer and Enamel Top Coat
- Color Selection: White
- Bottom weather seal: U-shape loop type vinyl with aluminum retainer
- Limited Lifetime Warranty
- Download Warranty HERE
- Download Finishing Instructions HERE
STANDARD WIDTHS
8′-0″, 9′-0″, 10′-0″, 12′-0″, 14′-0″, 15′-0″, 16′-0″, 18′-0″
STANDARD HEIGHTS
7′-0″, 8′-0″, 9′-0″, 10′-0″, 11′-0″, 12′-0″
HARDWARE
15″ or 12″ radius torsion hardware; track is 2″ bracket mounted. Quiet long life nylon rollers, non-corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door to keep the door rigid.
