The garage door is a focal point of your home. Selecting a beautiful raised or recessed panel door will make a lasting impression. A luxurious real wood garage door adds warmth and elegance to any home and to its surrounding. GarageDoorDesign.com are manufactured by seasoned craftsmen and use only the finest materials available, “They are built to last, beautifully”.
WOOD PANEL DOORS
Get a Quote
Product Details
Remodel Before / After
Get a Quote
- Panel Design
- Glass
- Your Details
Step 1/3

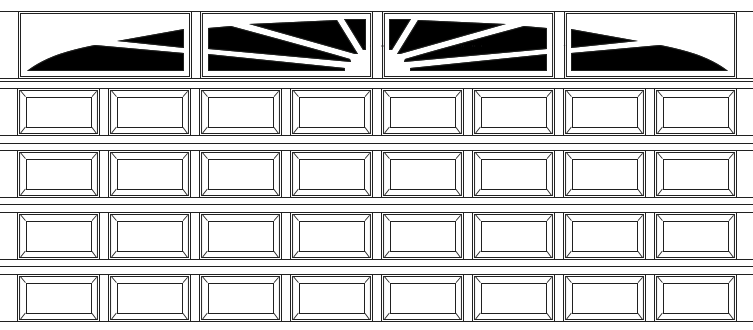

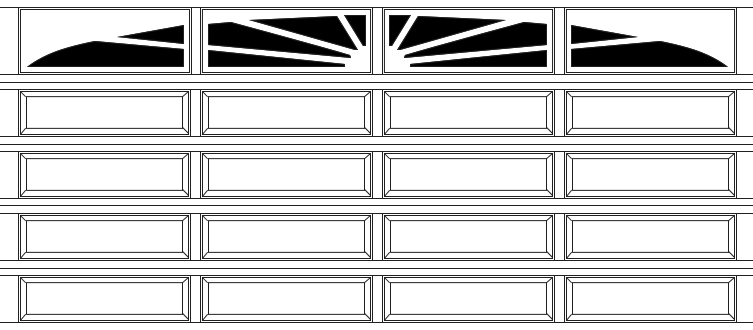

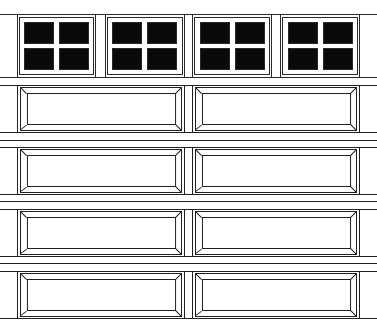

Choose your panel design
Step 2/3
Choose your glass
Step 3/3
Submit your quote request
Product Details
GENERAL INFORMATION
RAISED & RECESSED PANEL DOORS
- Mortise & Tennon Construction
- Frame Thickness: 1-3/8”
- Top & Bottom Rail widths: 4-7/8″
- Meeting Rail Width combined: 4-1/2″
- End Stile width: 4-1/2″,
- Center Stile width: 2-5/8″
- Panel thickness: Recessed 1” to 1-3/8”, Raised ¾” Nominal
- Finish: Face sanded ready for finish
- 1 Year Limited Warranty
STANDARD WIDTHS
8′-0″, 9′-0″, 10′-0″, 12′-0″, 16′-0″, 18′-0″
STANDARD HEIGHTS
7′-0″, 8′-0″, 9′-0″, 10′-0″, 12′-0″, 14′-0″
HARDWARE
15″ or 12″ radius torsion hardware; track is 2″ bracket mounted. Quiet long life nylon rollers, non-corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door to keep the door rigid.
RECESSED PANEL MODELS
- Model 321 FJ, Finger-Jointed Hem/Fir Frame – ¼” Luan Plywood Panels
- Model 321 SR, Solid Western Hemlock Frame – ¼” Luan Plywood Panels
- Model 322 FJ, Finger-Jointed Hem/Fir Frame – ¼” Tempered Hardboard Panels
- Model 322 SR, Solid Western Hemlock Frame – ¼” Tempered Hardboard Panels
- Model 326 FJ, Finger-Jointed Hem/Fir Frame – 3/8” Rough Sawn Breckenridge Plywood Panels
- Model 326 SR, Solid Western Hemlock Frame – 3/8” Rough Sawn Breckenridge Plywood Panels
RAISED PANEL MODELS
- Model 323 FJ, Finger-Jointed Hem/Fir Frame – ¾” Edge Glued Hemlock Panels
- Model 323 SR, Solid Western Hemlock Frame – ¾” Edge Glued Hemlock Panels
- Model 324 FJ, Finger-Jointed Hem/Fir Frame – ¾” Edge Glued Redwood Panels
- Model 324 SR, Solid Western Hemlock Frame – ¾” Edge Glued Redwood Panels
- Model 327 FJ, Finger-Jointed Hem/Fir Frame – ¾” MDF Panels
- Model 327 SR, Solid Western Hemlock Frame ¾” MDF Panels
- Model 328 FJ, Finger-Jointed Hem/Fir Frame – ¾” Solid Western Red Cedar Panels
- Model 328 SR, Solid Western Hemlock Frame – ¾” Solid Western Red Cedar Panels
- Model 329 FJ, Finger-Jointed Hem/Fir Frame – ¾ Solid Meranti Mahogany Raised Panels
- Model 329 SR, Solid Western Hemlock Frame – ¾ Solid Meranti Mahogany Raised Panels
- Model 424 SR, Solid Redwood Frame – ¾” Edge Glued Redwood Panels
- Model 828 SR, Solid Western Red Cedar Frame – ¾” Solid Western Red Cedar Panels
- Model 929 SR, Solid Meranti Mahogany Frame – ¾ Solid Meranti Mahogany Panels
